Solving WebSocket Routing Challenges in Kubernetes for Enterprise Browser Automation Farms

Executive Summary

In distributed testing environments, “browser-farms” running on Google Kubernetes Engine (GKE) are critical for parallel execution. These farms host Chrome headless pods exposing the Chrome DevTools Protocol (CDP) for automation.

However, a critical architectural challenge arises when the Executor service attempts to attach to specific Chrome sessions via WebSocket (WSS). Standard Kubernetes load balancing is stateless, causing Executors to connect to the wrong pod. While standard Ingress solutions usually solve this via session affinity, specific limitations within GKE and the application architecture rendered them unviable.

This article details the failure of standard Ingress strategies and the implementation of a robust Pod-to-Pod solution using dynamic IP injection.

The Problem: The “Localhost” Trap

The browser-farm architecture consists of multiple replicas of a Pod running:

1. Google Chrome (Headless): Listening on port 9222.
2. NGINX: Acting as a reverse proxy.
3. Executor Service: The client attempting to control the browser.

The Failure Workflow

When Chrome starts a session, it advertises a connection URL bound to its local loopback interface:

“webSocketDebuggerUrl”: “ws://localhost:9222/devtools/page/<session_id>”

When the Executor attempts to connect using the Kubernetes Service (e.g., ws://browser-farm-service:9222/…), the Round-Robin algorithm routes the handshake to any available pod. If the request lands on a pod different from the one that created the session, the target pod rejects the unknown Session ID, causing Session not foundGK errors.

Why Standard Ingress Solutions Failed

Before developing a custom solution, we evaluated standard Kubernetes Ingress strategies to handle session affinity (stickiness). Both major options were disqualified due to technical constraints.

A. Google Cloud (GCE) Ingress

The native GKE Ingress controller was the first candidate. However, it was ruled out because:

• Affinity Limitations: GCE Ingress only supports Cookie-based or ClientIP-based affinity. It lacks support for arbitrary Header-based affinity. The google document says “You can use a BackendConfig to set session affinity to client IP or generated cookie.”
• Application Incompatibility: The Executor service is a programmatic client, not a standard web browser. Adapting the client to manage and persist Ingress-generated cookies was not feasible. Furthermore, relying on ClientIP hashing was deemed unreliable due to the dynamic network nature of the internal cluster traffic.

B. NGINX Ingress Controller

We subsequently attempted to deploy the community NGINX Ingress Controller, which supports sophisticated header-based routing (e.g., routing based on a Session-ID header).

• Security Constraints: The deployment failed due to strict RBAC (Role-Based Access Control) policies within the cluster.
• Access Denial: The Kubernetes cluster denied the specific ClusterRole permissions required for the NGINX controller to operate effectively. We were unable to override or “force” these permissions due to organizational security governance.

Conclusion: With Layer 7 (Ingress) solutions blocking us on both technical and security fronts, we determined that a Pod-to-Pod (Direct Addressing) approach was the only viable path.

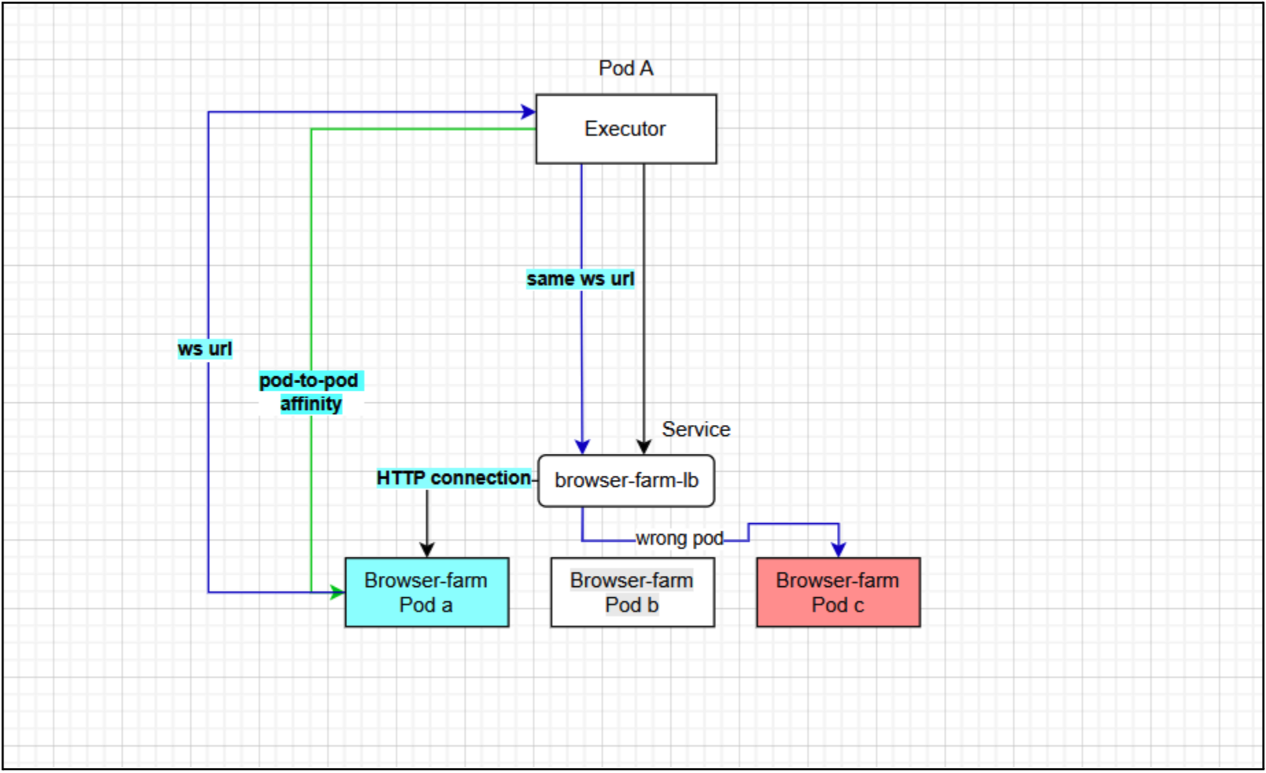

The Solution: Dynamic Pod-IP Injection

To guarantee the WebSocket request reaches the correct instance without an Ingress middleman, we altered the “advertisement.” Instead of returning localhost, the pod now returns its own Pod IP or FQDN.

This approach requires two changes:

1. Infrastructure: Injecting Pod Metadata into the container environment.
2. Runtime: Scripting a dynamic rewrite of the Chrome JSON response.

Step 1: Injecting Pod Metadata

We utilize the Kubernetes Downward API to expose the Pod’s IP as an environment variable.

Update kubernetes/deployment.yaml:

containers:
- name: browser-farm
env:
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace

Step 2: The Node.js Rewriter Script

Instead of relying on fragile shell scripts (sed), we deployed a robust Node.js script. This script polls the local Chrome instance, parses the JSON safely, injects the POD_IP, and exposes the corrected list.

Verification:

Exec into a running pod to ensure the webSocketDebuggerUrl is rewriting correctly:

kubectl exec -it -- curl -s
http://localhost:9222/json/list

Expected Output:

"webSocketDebuggerUrl":
"ws://10.4.1.17:9222/devtools/page/1234-5678-ABCD"

Results and Benefits

By bypassing the limitations of GCE Ingress and the security restrictions of NGINX Ingress, we achieved:

• 100% Session Affinity: Executors connect directly to the specific pod IP, eliminating routing guesswork.
• Simplified Networking: Traffic stays within the cluster VPC, reducing latency compared to hair-pinning through an external Load Balancer.
• Compatibility: This method works regardless of Ingress limitations or restricted RBAC policies, making it highly portable across different GKE security postures.
